AGM Global Vision PVS-14 3APW Gen. 3 P45 White Phosphor Night Vision Monocular

Features

• Compact, rugged design
• Waterproof
• Head or helmet-mountable for hands-free usage
• Manual gain control
• Ergonomic, simple, easy-to-operate controls
• Built-in Infrared illuminator and flood lens
• 3 year warranty (through manufacturer)

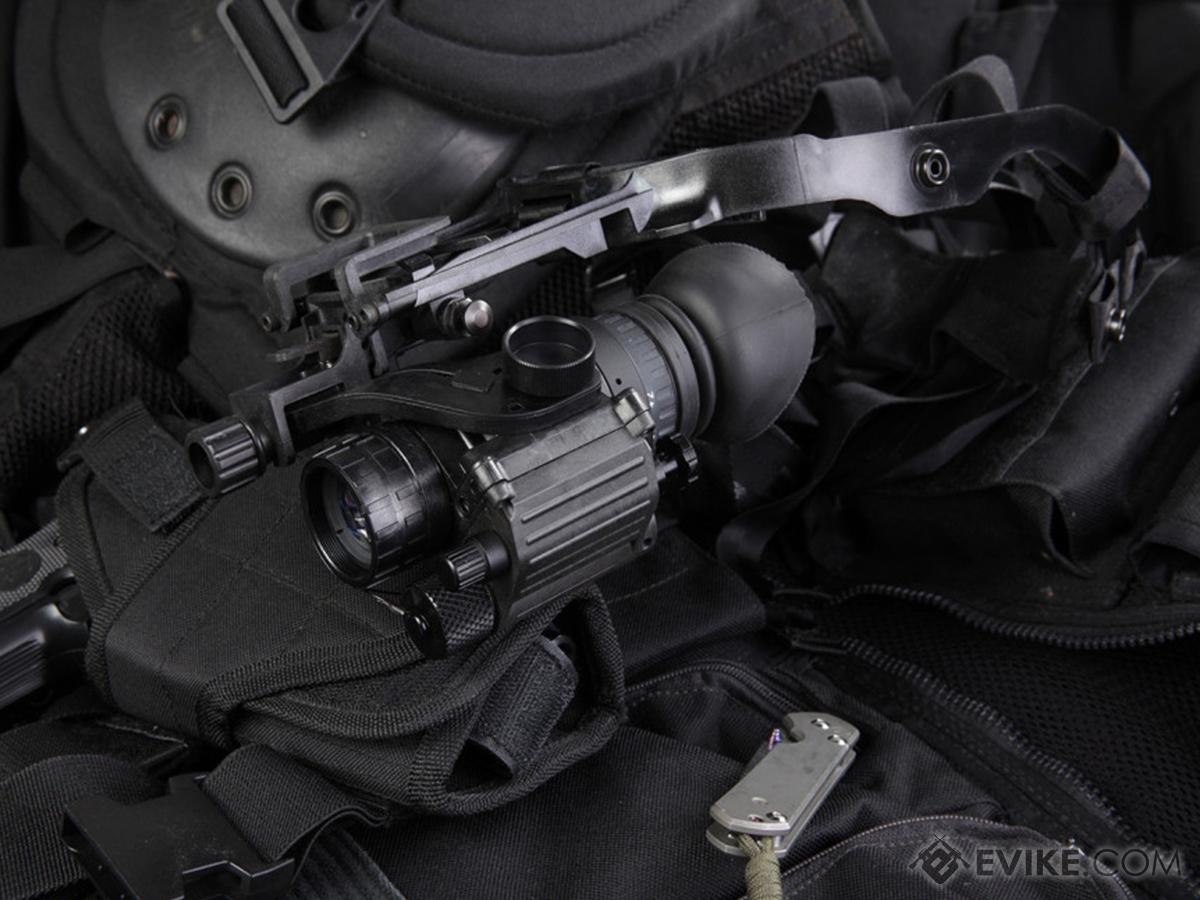

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function.

The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM's PVS14 includes an array of optional accessories to support virtually any operation.

Manufacturer: AGM Global Vision

Specifications:

Image Intensifier Tube: Gen 3 Auto-Gated "3APW" FOM 1600-2000
Resolution: 64 - 72 lp/mm
Field of View Cleanness by Zone: Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.
Magnification: 1x (3x and 5x optional)
Lens System: 26 mm; F/1.2
FOV: 40°
Focus Range: 0.25m to Infinity
Diopter Adjustment: -6 to +2 dpt
LED Indicators: Low Battery; IR On; Excess Light Conditions
Infrared Illuminator: Yes
Manual Gain Control: Yes
Bright Light Cut-Off: Yes
Automatic Shut-Off System: Yes
Battery Type: 1x AA Alkaline
Battery Life (Operating): Up To 50 Hours @ 20°C
Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)
Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)
Weight: 320g (12.4oz)
Overall Dimensions: 114mm x 63mm x 69mm (4.5" x 2.5" x 2.7")
Package Includes: PVS-14, Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator's Manual, Battery


Export Restrictions: Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

NOTE: Specifications are subject to change without notice.

About AGM Global Vision

Based in Springerville, Arizona, USA, AGM Global Vision designs, develops, and distributes a wide range of professional-grade night vision and thermal rifle scopes, clip-on systems, spotting scopes, binoculars, monoculars, goggles, multispectral lasers, infrared illumination devices, and more.
