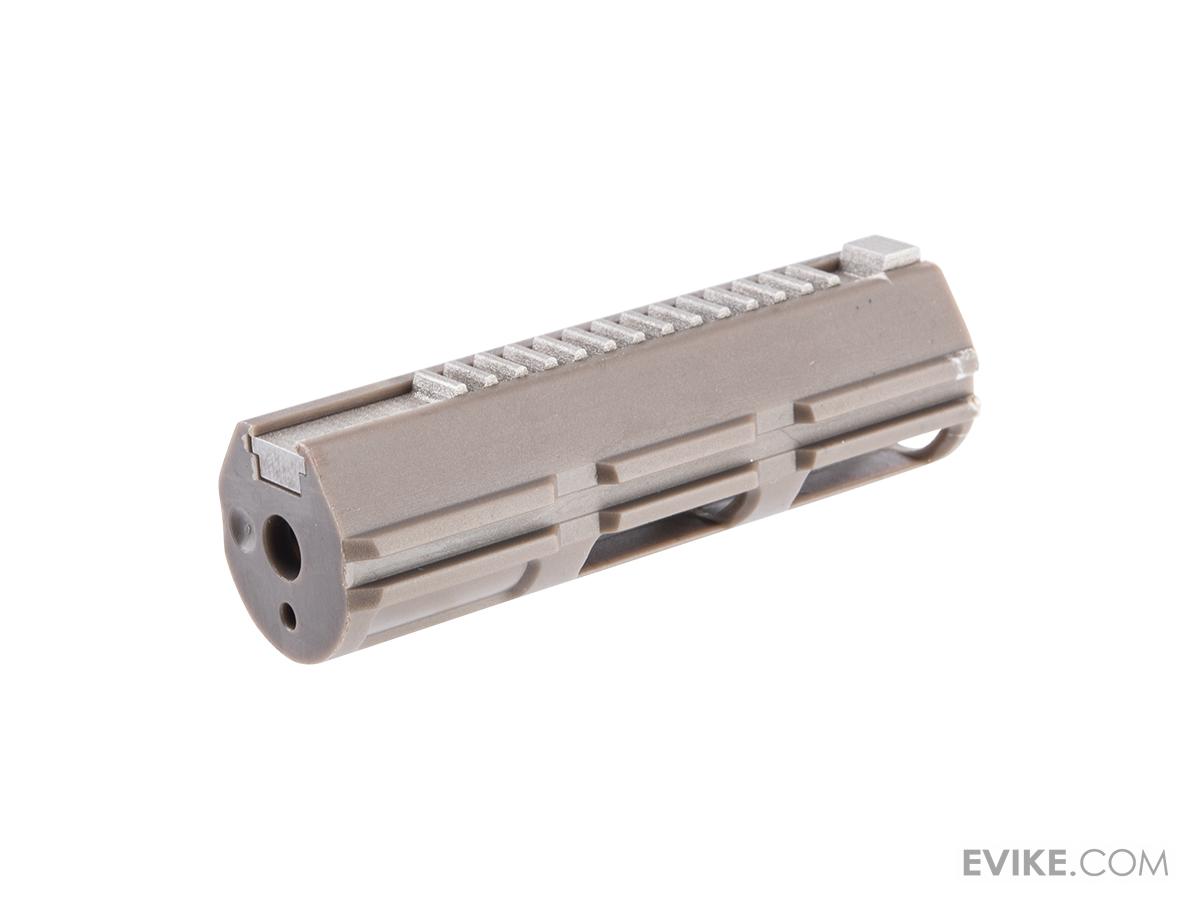

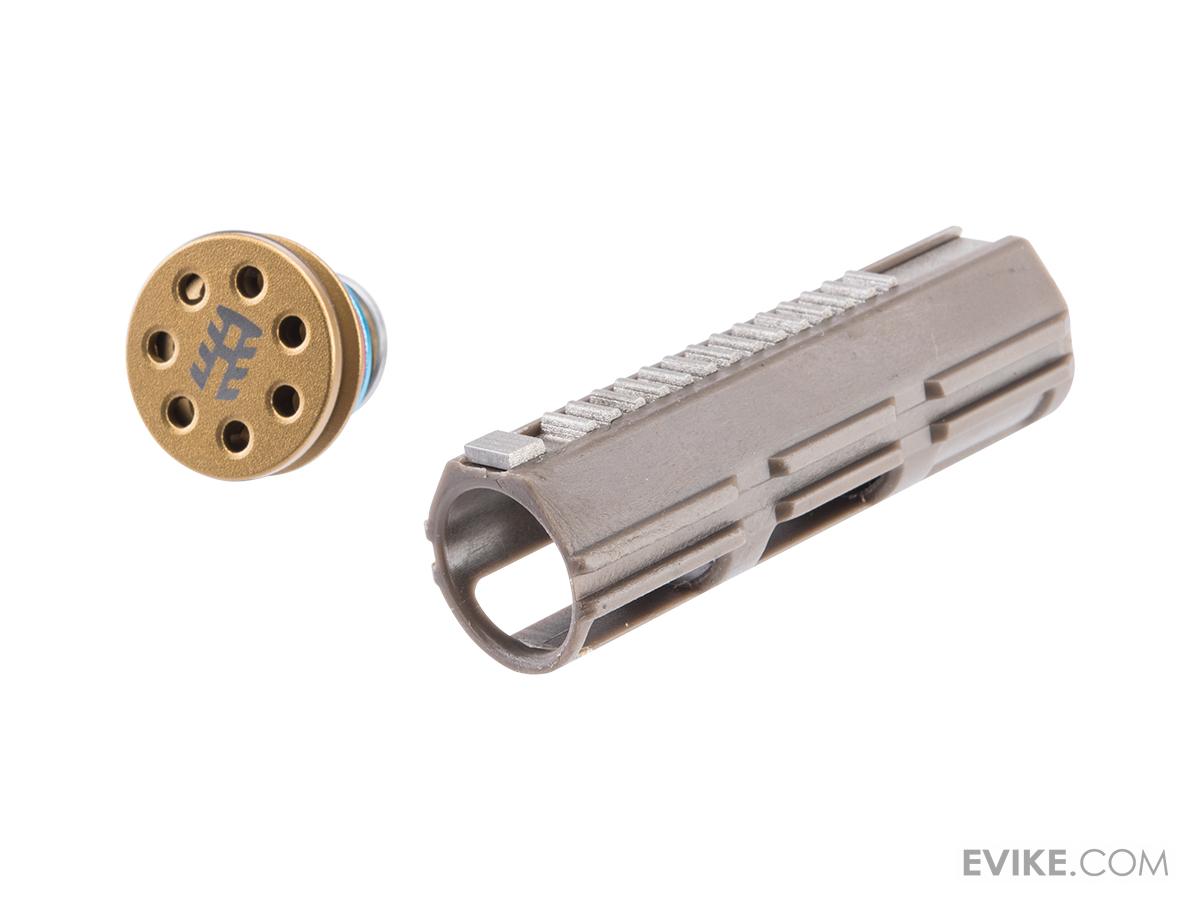

Aztech Innovations Xtreme Nylon Polymer Piston for Airsoft Gearboxes (Model: CNC Rack)

ID: 102634 (Part-Aztech-Piston-CNCr)
PISTON - CNC rack
Aztech Innovations Xtreme Nylon Polymer Piston for Airsoft Gearboxes (Model: CNC Rack)
Hover or touch above to zoom
Product image 1 Product image 2 Product image 3 Product image 7
Aztech Innovations

$35.00

This item is currently Sold Out

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Model Options:
ModelCNC Rack

Description

Specifications

Reviews

Find in Store

Features

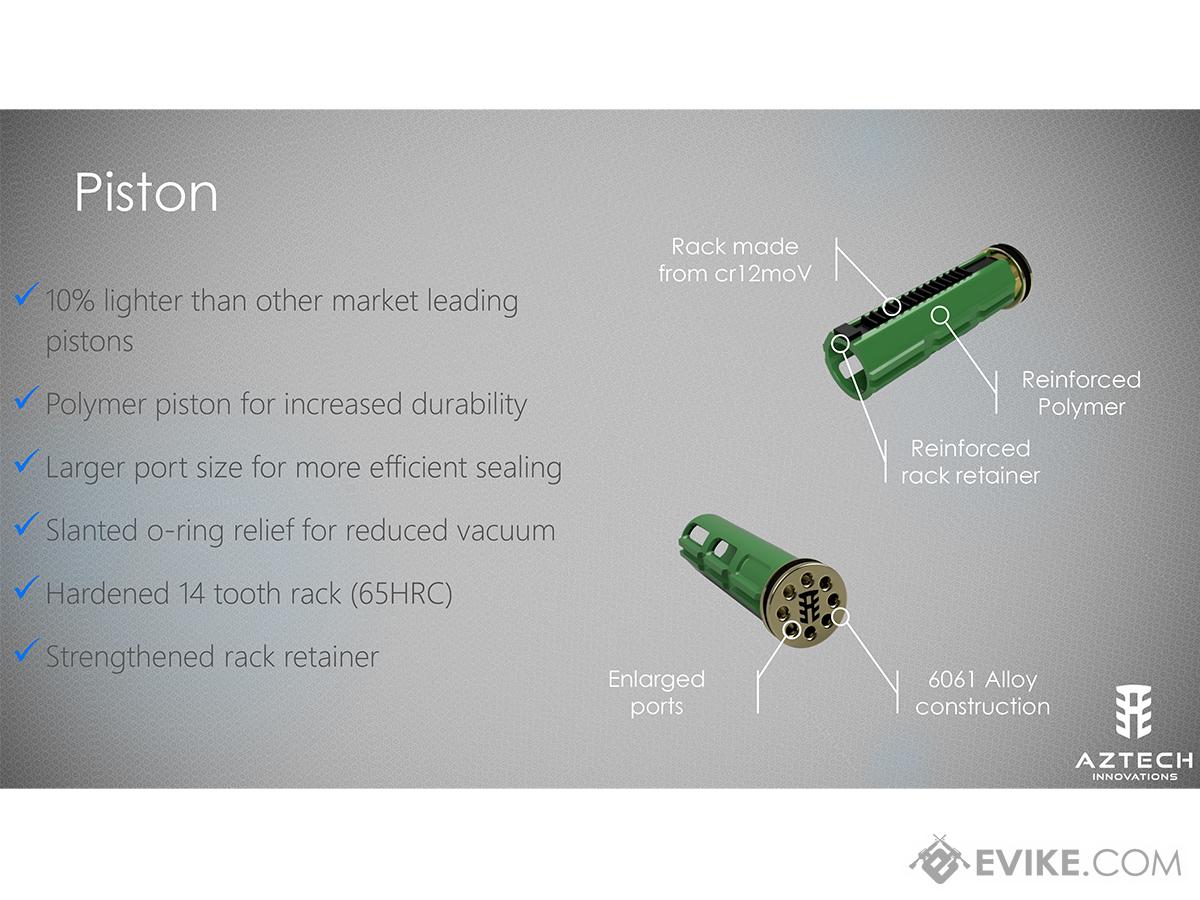

  • Lightweight ported and reinforced ultra strong PA66 Polymide Piston
  • Cr12MoV hardened 14 tooth rack or CNC 440C Stainless Steel rack

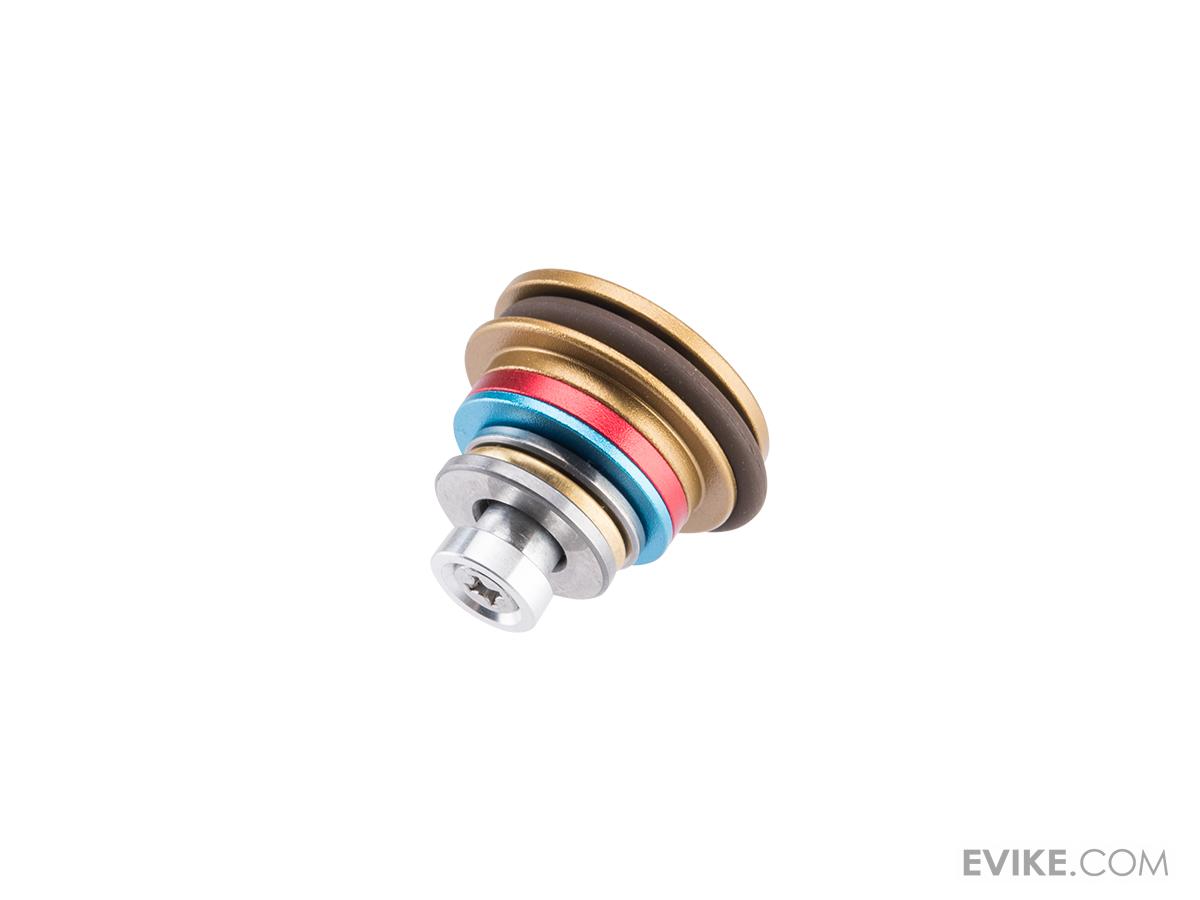

  • CNC 6061 Aluminum Cylinder head with adjustable AOE spacer plates from 0 to +3mm
  • 8 Port head for max flow
  • Back cut chamfer for O-ring contraction
  • 360 degree axial thrust bearing spring seat
  • CNC Aluminum head mounting plate
  • Viton long life max seal o-ring
This piston literally ticks every single box for the ultimate AEG Piston.

Custom made Fiber reinforced PA66 Polyamide (Nylon) Lightweight Piston, CNC head, with your choice of SHS or CNC cut rack, strengthened and weight reduced with large windows in the low stress areas, with total weight is under 27.5 grams, this is DSG and high rate of fire ready out of the box.

We have over engineered the piston as much as physically possible. Nearly doubling the amount of material to the highest stress point at the back of the piston bridge to increase support for the pick up tooth with 80% more material than every other piston we have measured and tested. We opted for Cr12MoV hardened steel as it is the strongest metal we could use to ensure maximum life and outright breaking strength. Then added in every piston head feature we could, all this culminates in the ultimate piston!

Manufacturer: Aztech Innovations

Specifications:

Compatibility: Most Airsoft AEGs
Material: Steel, High Strength PA66 Polyamide

NOTE: It is highly recommended to bond the steel rack to the body of the piston for high performance builds. We recommend a using JB Weld Original Steel reinforced Epoxy for the highest strength bond available Or at very least high strength Gorilla Grip 2 part araldite epoxy.

About Aztech Innovations

Aztech Innovations designs and manufactures unique parts and solutions for popular Airsoft platforms.
