AGM Global Vision StingIR 640 Multi-Purpose Thermal Imaging Monocular

Features

• 12m high-sensitivity detector

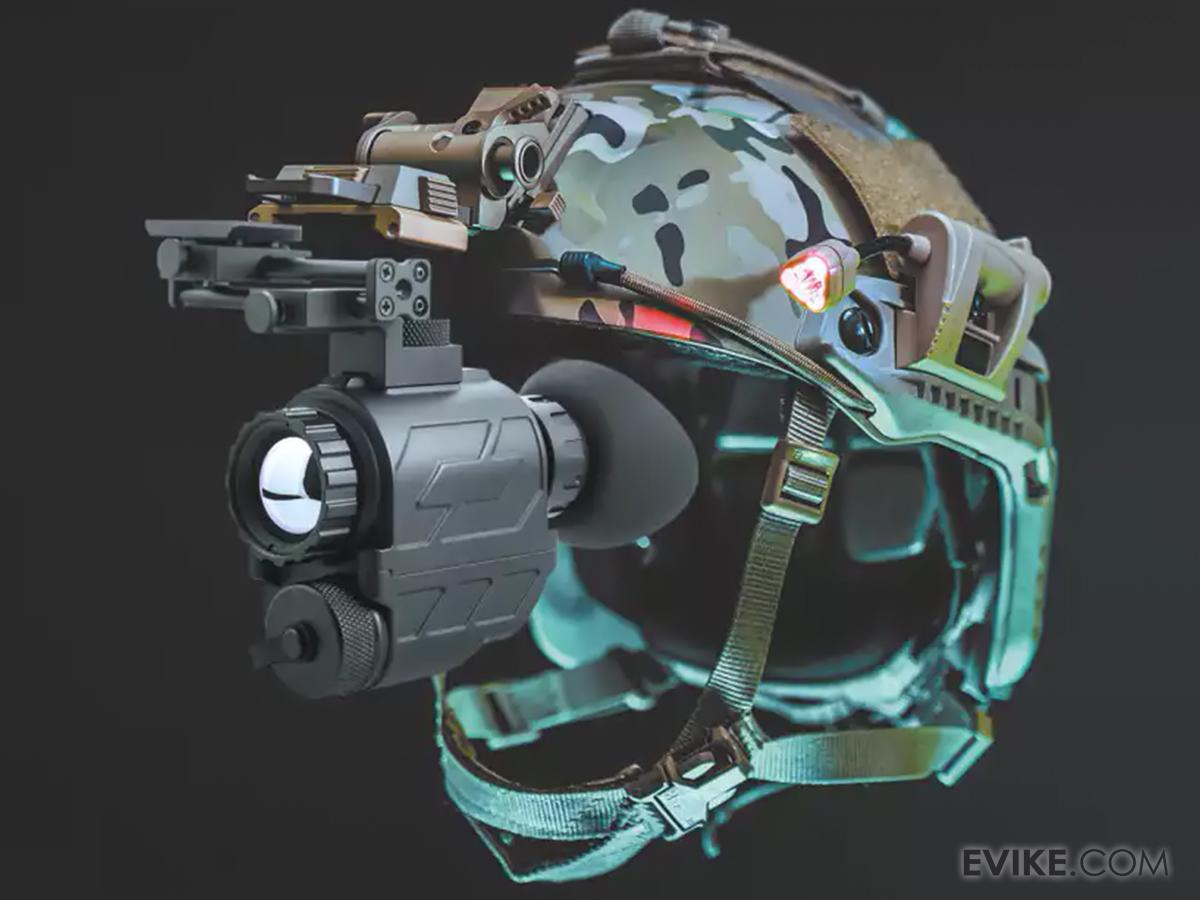

• Head- or helmet-mountable for hands-free usage
• Compact, sturdy design
• High-resolution OLED display
• Multiple thermal image palettes
• Device supports up to 8— digital zoom
• Powered by 1x CR123A/RCR123 or 18650 Lithium battery
• Up to 5 hours continuous running
• Digital compass and inclinometer
• Type-C interface
• 5 year warranty (through manufacturer)

The AGM StingIR 640 miniature handheld observational thermal monocular is equipped with a 640—480, 12 micron, sub-25mK thermal detector and high-resolution OLED display. The StingIR is a full-featured unit, weighing less than 7 ounces/200 grams. The monocular can be helmet mounted for hands-free operations, or used as a standalone handheld device. The SingIR with included weapon mounts can also be used as a stand-alone thermal scope, or thermal clip-on, making it one of our most versatile offerings.

Other features include a digital compass, inclinometer, up to 8x digital zoom and the ability to be powered by two types of replaceable CR123 or 18650 batteries. The high-sensitivity built-in thermal detector provides you with a clear view in any lighting condition. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue and other fields.

Manufacturer: AGM Global Vision

Specifications:

Digital Compass: Yes
Palettes: WhiteHot, BlackHot, OrangeHot, Rainbow
Exit Pupil Diameter: 12mm
Digital Magnification: 1x - 8x
Detector Type: 12 µm Uncooled VOx Microbolometer
FFC (Flat Field Correction): Auto (1 to 10 Min. Interval) or Manual
Refresh Rate: 50Hz
Resolution: 640 x 480
Field of View (H x X): 16.3° — 12.3° (H — V)
Digital Zoom: 1x, 2x, 4x, 6x, 8x
Diopter Adjustment Range: -5 to +2 dpt
Monitor: 1024 x 768 OLED
Video Output: PAL Video Output via USB Port
Battery Type: 1x CR123A (3V) or RCR123 (3.7V) or 18650 (4.2V)
Battery Operation Time: CR123A - up to 3 hours / RCR123 - up to 2 hours / 18650 - up to 5 hours CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours
External Power Supply: 5 VDC / 2A, 1.5W
Operating Temperature Range: -20°C to 50°C (-4°F to 122°F)
Weight: 220g (7.8oz)
Overall Dimensions: 140mm x 70mm x 50mm (5.5" x 2.7" x 2")
Package Includes: Monocular, Helmet Adapter Bracket, Picatinny Mount, Clip-On Mount, 18650 battery Cap, USB Type-C Cable, Operation Manual, Packing Case


Export Restrictions: Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

NOTE: Specifications are subject to change without notice.

About AGM Global Vision

Based in Springerville, Arizona, USA, AGM Global Vision designs, develops, and distributes a wide range of professional-grade night vision and thermal rifle scopes, clip-on systems, spotting scopes, binoculars, monoculars, goggles, multispectral lasers, infrared illumination devices, and more.
