JeffTron MOSFET for Airsoft AEP Gearboxes
(Type: w/ Rear Wiring)

ID: 93722 (MOSFET-JT-MOS-NG)
JT-MOS-NG
Tap or click above to open expanded view
JeffTron

$26.50

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Type Options:
Typew/ Rear Wiring

Description

Specs

Reviews

Find in Store

Product Description

Features

  • Very small device dimension - uses Micro MOSFET II

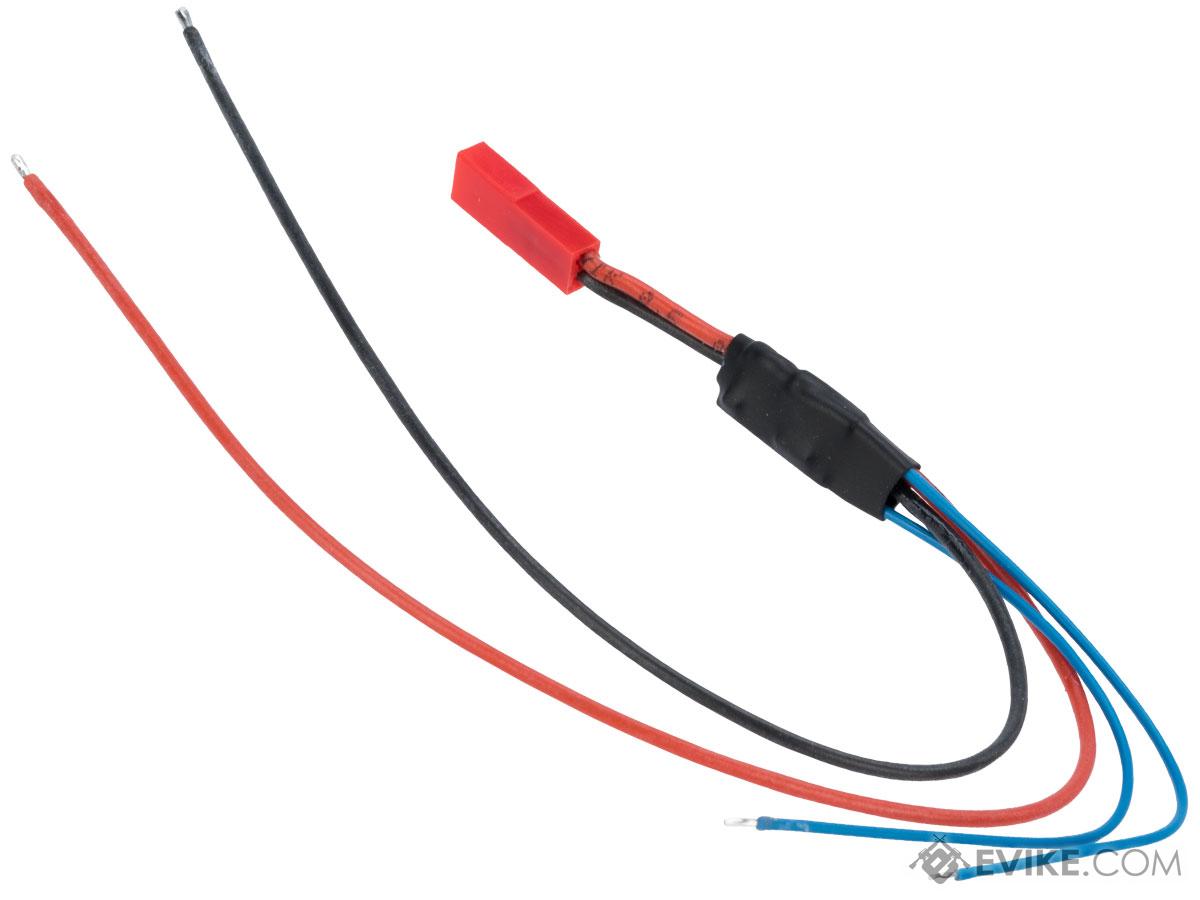

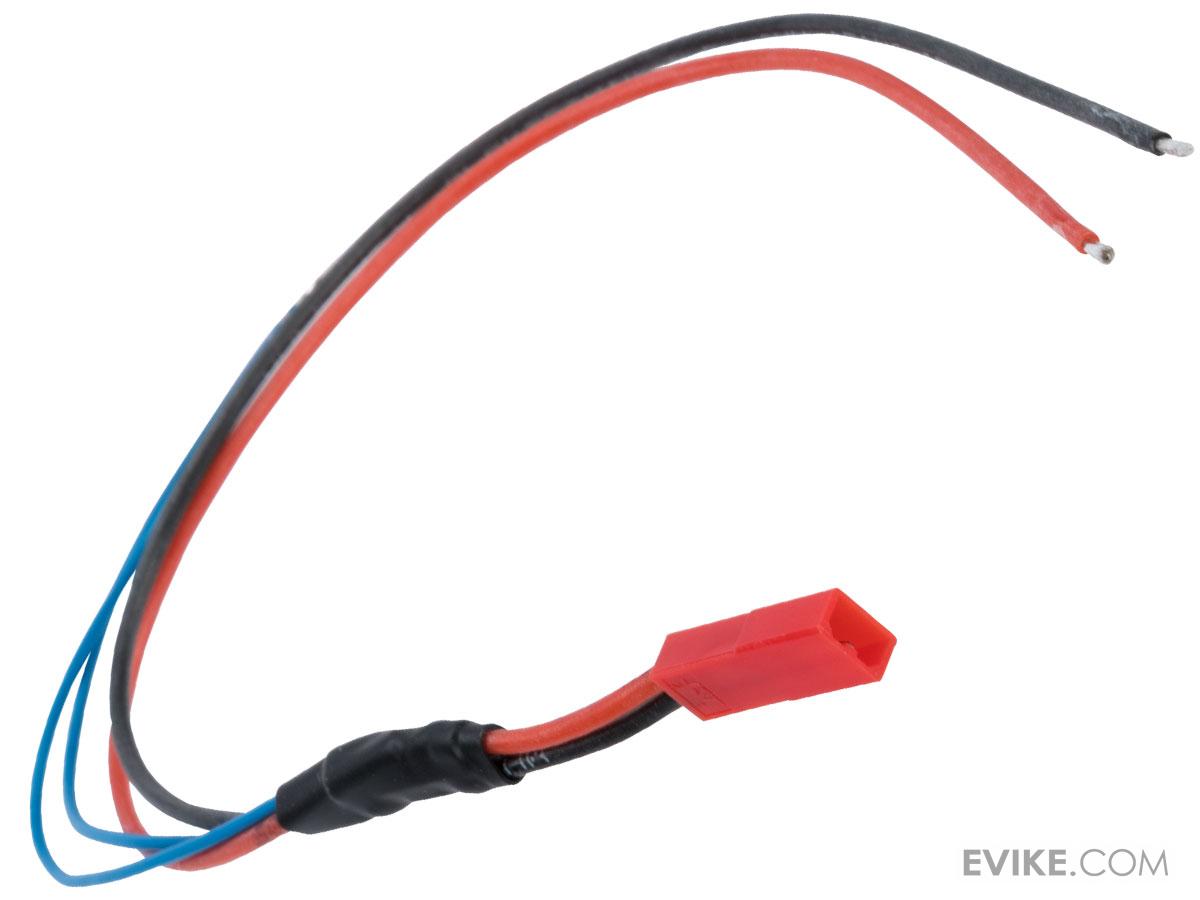

  • Prepared wiring allows fast and easy installation into your pistol. Simply solder wires to the motor and trigger contacts
  • On the devices are pre-soldered high quality wiring 0.5 mm (AWG20) with silicone insulation (length 210mm from MOSFET) and blue wires 0.25 mm (AWG24) with PVC insulation (length 110mm from MOSFET)
  • Can be used with any AEP upgrade, because it was designed for spring up to M160 (equivalent for current 75A single shot fire or 25A burst fire for max. 30s)
  • Recommended to use 7.4V LiPo battery, but device is specified for common batteries up to 17V (Ni-xx 8.4 - 12V, LiPo 7.4 - 14.8V)
  • No current consumption in the idle mode
  • No sparking on switch contacts
Professionally made MOSFET designed for airsoft electric pistols (AEP).
Device increases gun rate of fire and battery holds longer than with basic wiring.

Can be installed without modifications into these AEP:

Cyma CM.030 18C
Cyma CM.121 Desert Eagle
Cyma CM.122 P226
Cyma CM.123 M1911
Cyma CM.125 USP
Cyma CM.126 M92F
Cyma CM.127 Phantom
Cyma CM.128 HI-CAPA 5.1
Tokyo Marui 18C AEP
Tokyo Marui M93R AEP
Tokyo Marui M9A1 AEP
Tokyo Marui USP AEP
Umarex HK USP AEP
Double Eagle M81

Manufacturer: JeffTron

2 Customer Reviews

(Write a review)

by Joey T. on 09/26/2022
"Just installed a couple days ago on my CM 030 and it works flawlessly with a snappy trigger response (everything else on my gun is stock).

Makes it really easy to transition from the Nimh batteries to lipos that use jst connectors. It does require some soldering knowledge; additionally you do need to remove the gearbox from the gun. It's also is a tight fit, but regardless none of my wires look like they're getting cut or crushed.

I used a 7.4v 400mAh 2S 30C lipo battery that was 1.5 x 0.8 x 0.6in (L x W x H) using jst connectors that I bought off of amazon for a small quad copter. Now this did create a really snug fit so if you can find a battery that's smaller than those dimensions you should be good.

Now, this kit is meant for the battery to be INSIDE the gun, I'm sure you could probably adapt it and cut some wires if you're wanting to do the external lipo lanyard mod. But if you're going to do that I would recommend getting the Perun Ultra Compact Mosfet since you actually solder wires to the mosfet yourself rather than it coming prewired like this one.

All in all this is a great simple mosfet for an aep that doesn't already come with a mosfet.
by Carlos V. on 10/12/2023
"Installed and got about 2-3 shots out. Then nothing... This is my third Jefftron mosfet, the other two are still good to this day. This one for some reason just gave right up...
