Arisaka Defense CNC M-LOK Inline Scout Flashlight Mount (Color: Black)

Features

• Durable and precision made CNC 7075-T651 aluminum
• Scratch and wear resistant MIL-A-8625 Type III hard coat anodization
• Mounts onto any M-LOK handguard and provides a stable light offset
• M-LOK compatible
• Cerakote provided by Weapon Works LLC
• Made in the USA

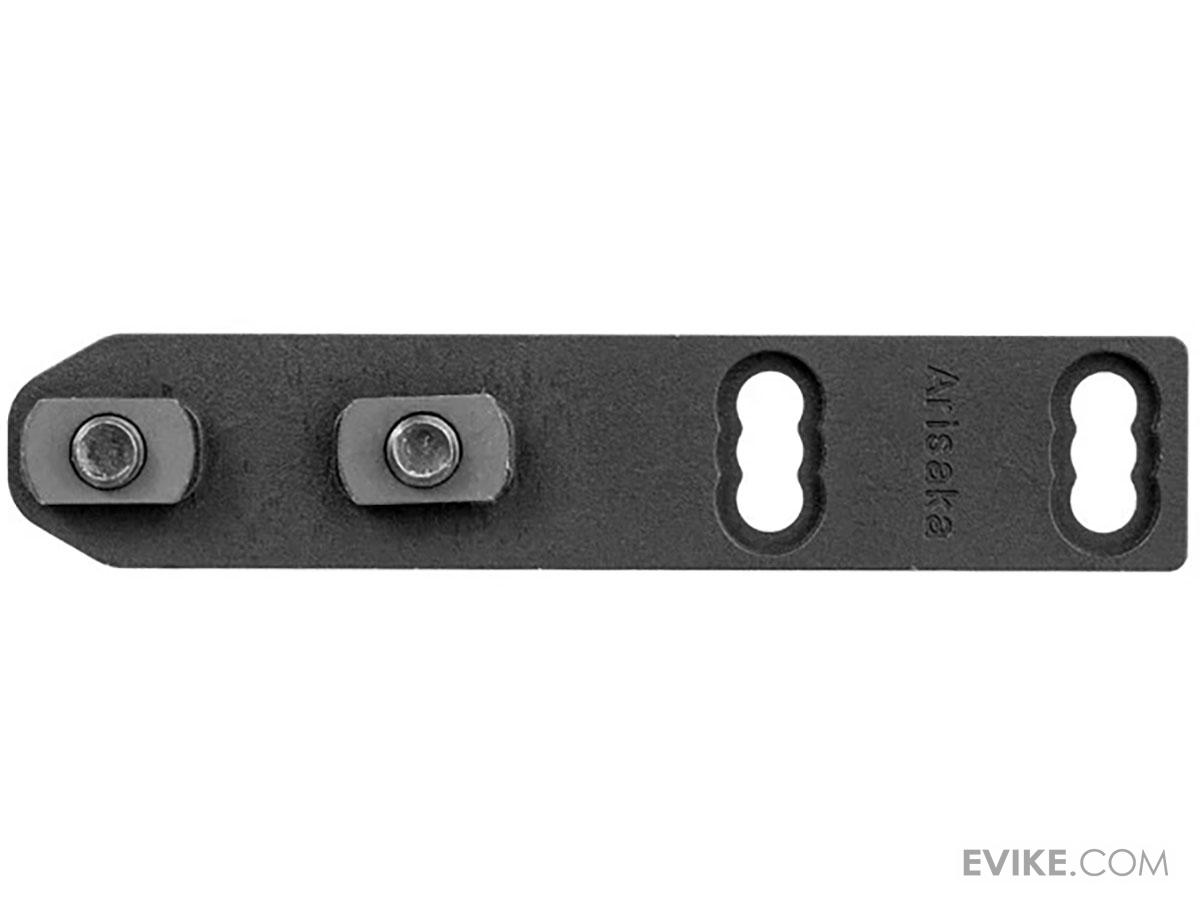

The Patented Arisaka Inline Scout Mount is designed specifically for the Surefire Scout Light M600 and M300 series weapon lights, the Arisaka 300 and 600 Series Lights, and the Streamlight Protac Rail Mount 1, 2 and HL-X. It replaces the stock Picatinny rail adapter with a low profile mount for M-LOK handguards. The mount is especially useful on handguards that feature 45 degree angle mounting flats, such as the BCM MCMR, Geissele Automatics SMR MK4, MK8 and MK16, Daniel Defense MFR, KAC URX4, ALG Defense EMR, MI Gen 3, Mega MML and Mega/Hodge Wedge Lock.

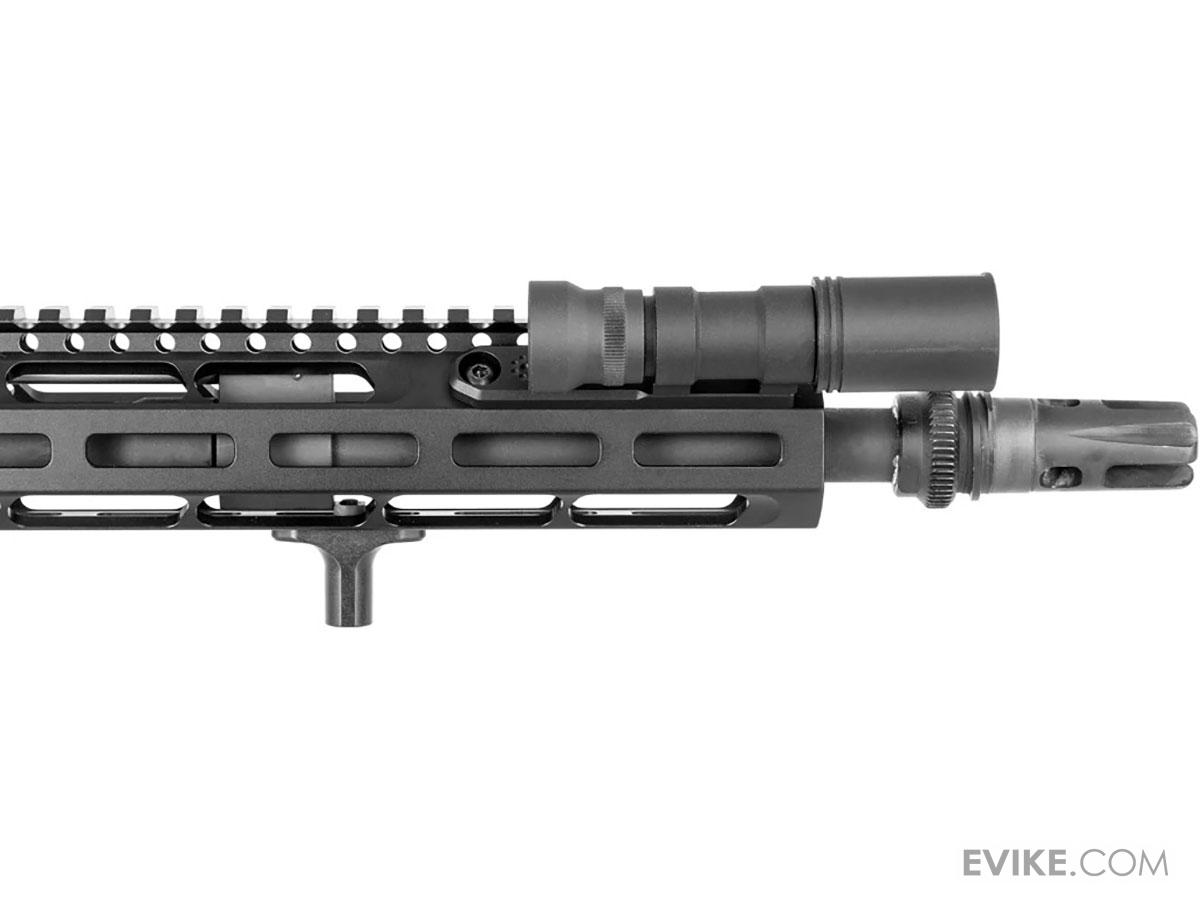

When used on a 45 degree angle mounting flat, the Inline Scout Mount allows the user to position the light closer or farther away from the top 12 o'clock rail to give clearance for front sights or other accessories. Three positions are provided, allowing an offset of 0.12" to either side of center. The base of the Surefire Scout Light sits only 0.2" above the mounting surface.

The mount is CNC machined from 7075-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires a 1/8" and 5/64" Allen wrench for installation (not included). Recommended torque: 30 inch lbs for M-LOK screws and 20 inch lbs for light body screws with medium strength threadlocker. Cerakote provided by Weapon Works LLC. Made in the USA.

Manufacturer: Arisaka Defense

Specifications:

Length: 86.36mm / 3.4in
Height: 5.08mm / 0.2in (at Surefire Scout Light mounting point)
Weight: 17.01g / 0.6oz
Anodization: MIL-A-8625 Type III hard coat
Compatibility: Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300, 600 and 18650 Series.
Package Includes: Mount, 2x M-LOK Nuts, 2x 10-24x5/16" Torx Button Head Screws, 2x 8-32x3/8" Torx Flat Head Screws
Materials: CNC 7075-T651 Aluminum

NOTE:

• Installation Tip: In order to reduce the overall length of the mount as much as possible, it is necessary to unscrew the tail cap of the light to access the front-most mounting screw.
• Requires an IP20 TorxPlus driver for installation (not included).
• A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-LOKscrews and 20 inch lbs for light body screws with Loctite 222 or 243.
• This mount is not intended for use in a cantilever fashion where it hangs off the end of the handguard. Doing so may result in mount failure in the event of a heavy impact to the light.

Fit with front sights varies depending on mounting location on handguards with 45 degree flats:

1. Top left 45 degree flat: Most sights work, including MBUS Pro, Knight's Armament Micro, Troy folding, and Diamondhead. MBUS Gen II work if positioned to allow clearance for the release tab.
2. Top right 45 degree flat: Due to the asymmetrical body of the Surefire Scout Light, placement of the front sight and light are more critical in this setup. The smaller sights like MBUS Pro and Knight's Armament Micro work fine, but the Troy, Diamondhead, and MBUS Gen II will not be able to clear the main body where the screw holes reside for the stock picatinny adapter. This means one or the other will have to be moved forward/back to get appropriate clearance. Another option is to use an Arisaka 300 Series Light Body or 600 Series Light Body, which will allow plenty of clearance.

This product is covered by U.S. Patent No(s). 11385026, D806199 and other pending patents.
