8 Best AEG Upgrades for Your Airsoft Build

So you've got your AEG Airsoft gun and you've started thinking about upgrades. Maybe you want more range, snappier trigger response, or better consistency. The good news is that AEGs respond extremely well to targeted upgrades; the right parts in the right order can transform a mid-tier gun into a serious performer. The bad news is that the wrong order wastes money and can actually damage components.

This guide covers the eight upgrades for your AEG that matter most, starting with the ones that deliver the highest return on investment.

Upgrade in the Right Order

Before getting into individual parts, this is the most important thing to understand: upgrading in the right sequence matters just as much as choosing the right Airsoft parts.

The most common beginner mistake is buying a stronger spring right away. Springs stress every other internal component like the gearbox shell, piston, gears, and motor, so upgrading spring power before the rest of the internals are solid is a reliable way to shorten your gun's life.

The logical upgrade sequence looks like this:

1. Motor
2. Inner Barrel
3. Battery / MOSFET
4. Hop-Up (Bucking & Nub)
5. Compression Parts
6. Gearset
7. Spring
8. Wiring

Following this order maximizes performance gains at each stage while protecting the components downstream.

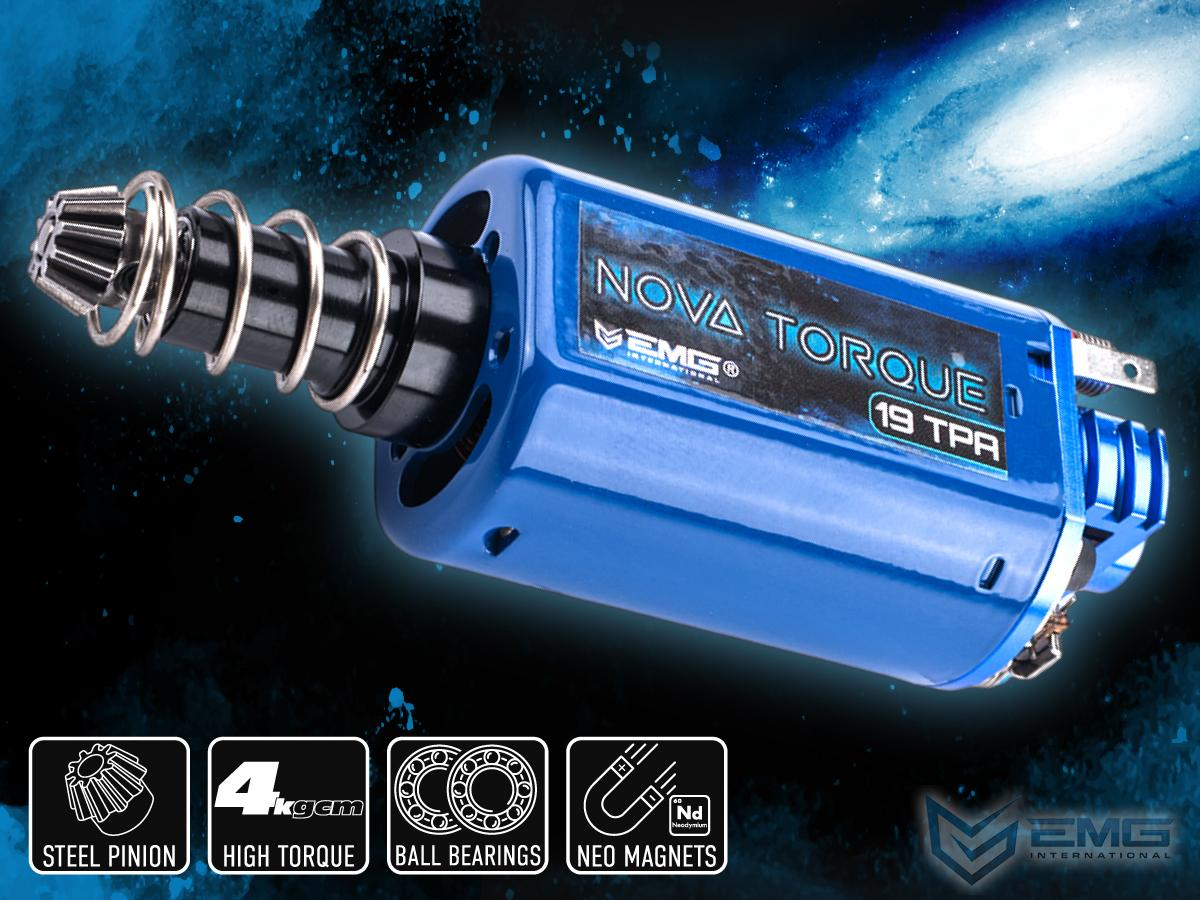

Pictured: EMG Nova Torque High Performance AEG Motor

1. Motor

The Airsoft motor is the fastest way to improve ROF and trigger response without opening the gearbox beyond the motor cage. Swapping the motor is a relatively accessible modification that delivers immediate results, especially when paired with an upgraded battery.

Motor selection isn't as simple as "high-torque for power, high-speed for ROF." The right choice depends on your existing setup, spring weight, and what you're trying to improve. High-torque motors can benefit builds across a wide range of spring weights by improving trigger response and reducing power draw, not just by muscling through heavier springs. High-speed motors can increase ROF, but running them with very light springs can cause over-cycling issues that lead to wear or damage over time. Many modern AEGs also ship with motors that perform well out of the box, so an upgrade isn't always necessary or immediately impactful.

The best starting point is identifying the specific bottleneck in your current setup, whether that's sluggish trigger response, insufficient cycling power, or ROF. Well-regarded options across both categories include the EMG Nova Torque, SHS High Torque, and the ASG Ultimate Boost.

One critical installation note: always adjust motor height after installation. An improperly set motor height causes the pinion gear to mesh incorrectly with the bevel gear, producing grinding that accelerates wear on both the gears and the motor itself.

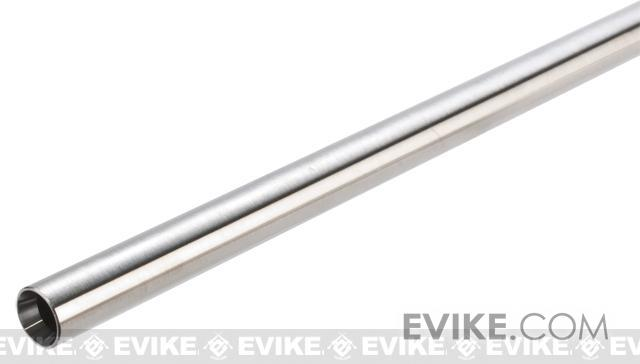

Pictured: Prometheus 6.03 EG Tight Bore Inner Barrel

2. Inner Barrel

Once the hop-up system is sorted, an upgraded inner barrel is the next logical step. Stock barrels often have inconsistent bore tolerances that introduce wobble as the BB travels toward the muzzle, reducing shot-to-shot consistency. A quality aftermarket barrel tightens those tolerances and improves groupings.

Bore diameter is the key decision: a 6.03mm barrel offers a good balance between accuracy and reliable feeding, making it the better choice for general play, speedsoft, and CQB (Close Quarters Battle). A 6.01mm tight-bore barrel maximizes accuracy for field play and DMR (Designated Marksman Rifle) builds, but it requires clean, high-quality Airsoft BBs and more frequent maintenance, as even a small amount of debris in a tight-bore can cause jams. For material, stick to stainless steel. Cheap brass barrels corrode over time, producing erratic shots as the bore degrades. Recommended brands include Laylax (Prometheus), Angel, and ZCI.

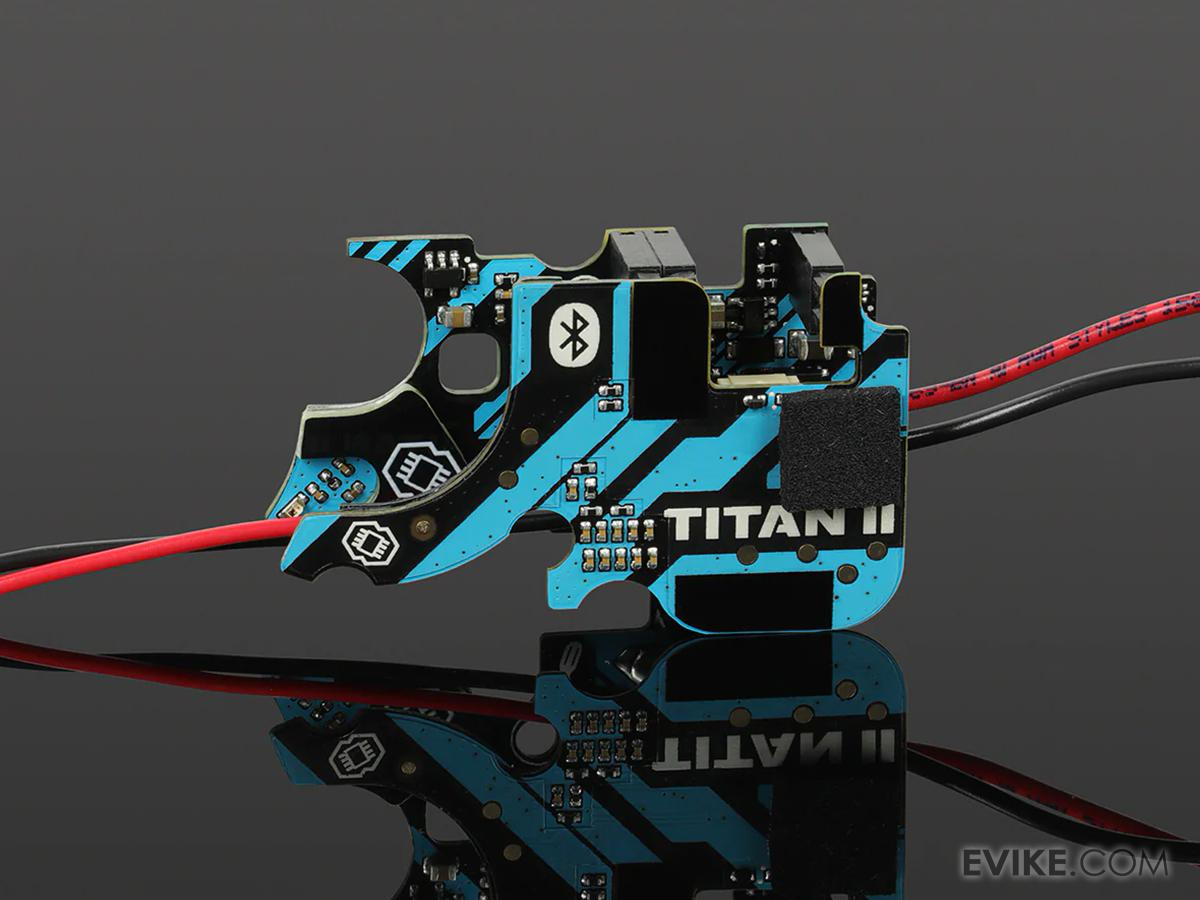

Pictured: GATE TITAN II Bluetooth Drop-In MOSFET for Version 2 Airsoft AEG Gearboxes

3. Battery and MOSFET

Switching from a stock 8.4V NiMH (Nickel-Metal Hydride) Airsoft battery to an 11.1V LiPo (Lithium Polymer) is one of the fastest and most noticeable upgrades for trigger response and ROF (Rate of Fire). The higher voltage drives the motor faster, which means faster cycling and a crisper, more immediate trigger feel.

There's an important catch: running an 11.1V LiPo without a MOSFET can damage your airsoft gun upgrades, burning out the mechanical trigger contacts in your gearbox fairly quickly. The MOSFET protects those contacts by routing battery current through the electronics instead. Learn more about installing MOSFETs in our blog.

When you are ready to go the LiPo route, the Gate ASTER or E-Shooter Kestrel are the community benchmarks for M4/V2/V3 gearbox builds. They're drop-in MOSFET systems for Version 2 and 3 AEG gearboxes, offering features such as hair-trigger adjustment, burst mode, active brake, configurable fire-selector modes, and pre-cocking for faster trigger response.

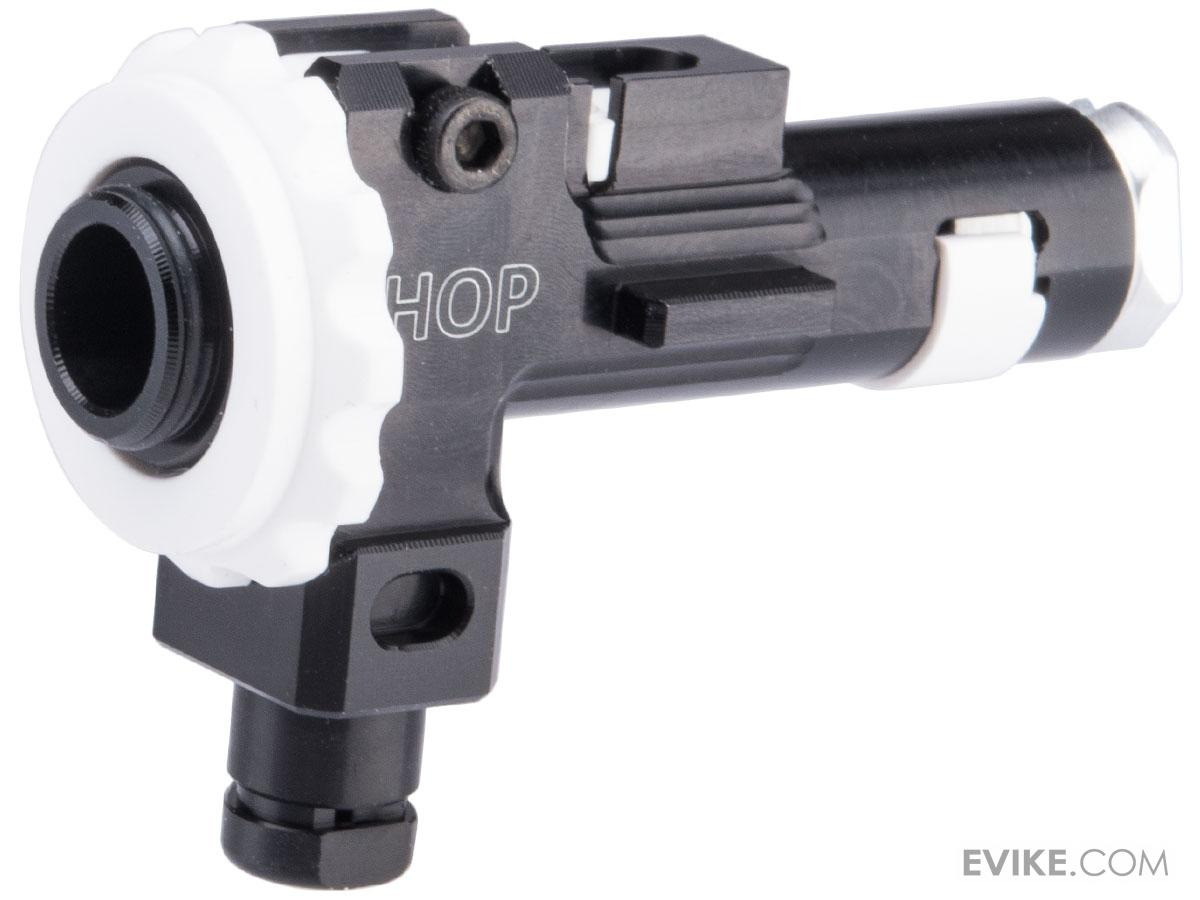

Pictured: Retro Arms CNC Machined Aluminum Rotary Hop-Up Unit for M4 Series

4. Hop-Up Bucking and Nub

The hop-up is the highest-impact upgrade you can make to any AEG, and it's almost always the best place to start. The hop-up system, specifically the bucking and nub, is the primary driver of BB range and straight flight paths. Upgrading these three components together produces more consistent backspin, which translates directly to better accuracy and effective range.

For bucking choices, the Prometheus Purple is one of the most widely recommended options in the community, well-suited for guns shooting in the 300-400 FPS (Feet Per Second) range. For hopping heavier BBs in the 0.28g and up range, the Maple Leaf Hybrid bucking is an excellent choice. For the hop-up unit itself, M4/V2 builds benefit from the MAXX M4 APRO or RETRO ARMS M4 Hop-Up Unit. AK/V3 players should look at the Arcturus RS Gen 2 Reinforced Polymer Precision Rotary Hop-Up Unit.

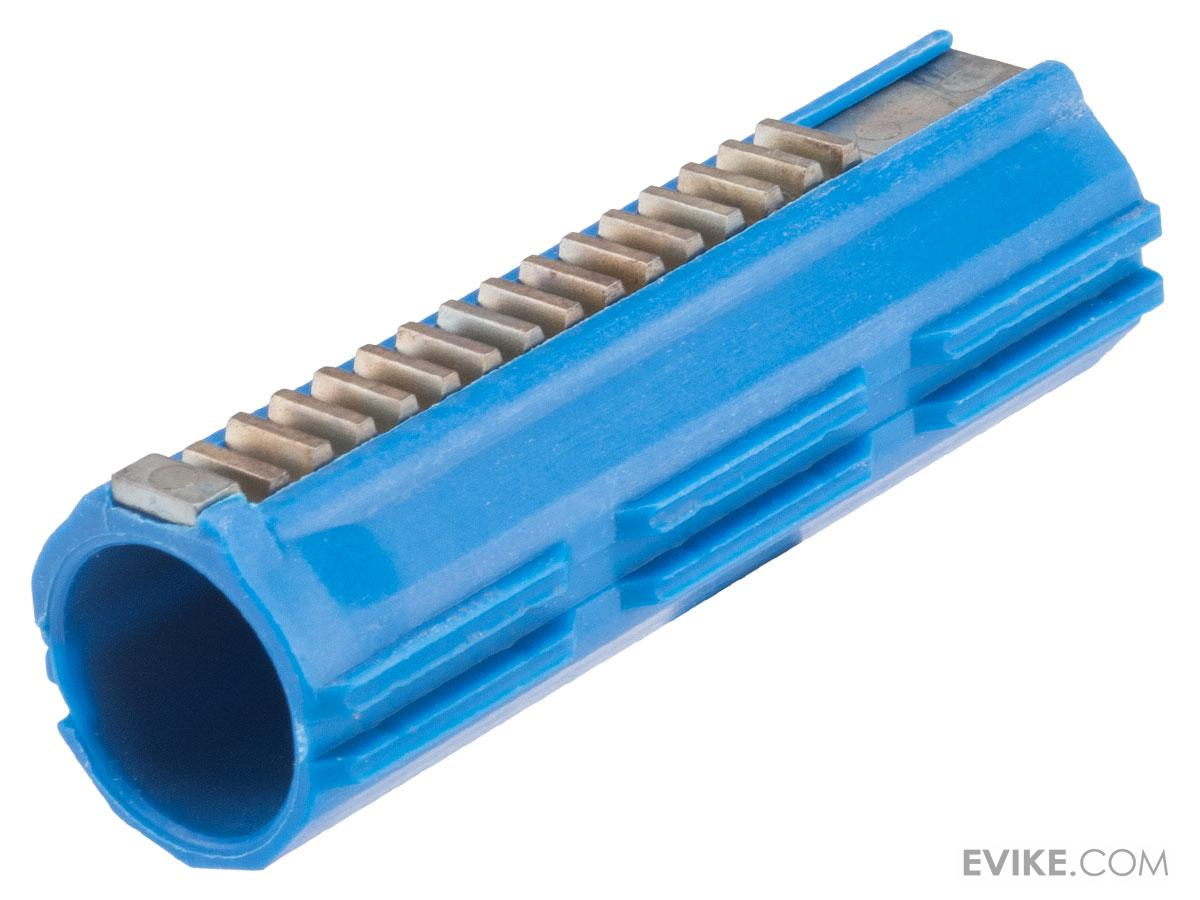

Pictured: CYMA Newest Type Polycarbonate Piston w/ Full Steel Teeth

5. Compression Parts

Many stock AEGs ship with piston heads and air nozzles that don't seal properly from the factory. An imperfect air seal means inconsistent FPS and unpredictable range, with the BB not receiving the same push on every shot. Fixing the compression system stabilizes your FPS output and makes everything else in your build perform more predictably.

The key parts to address are the piston head (with an air seal O-ring), cylinder head, air nozzle (which must match your specific hop-up unit; this is a common mistake that causes feeding issues), and the cylinder itself (volume should be matched to your barrel length for optimal air efficiency).

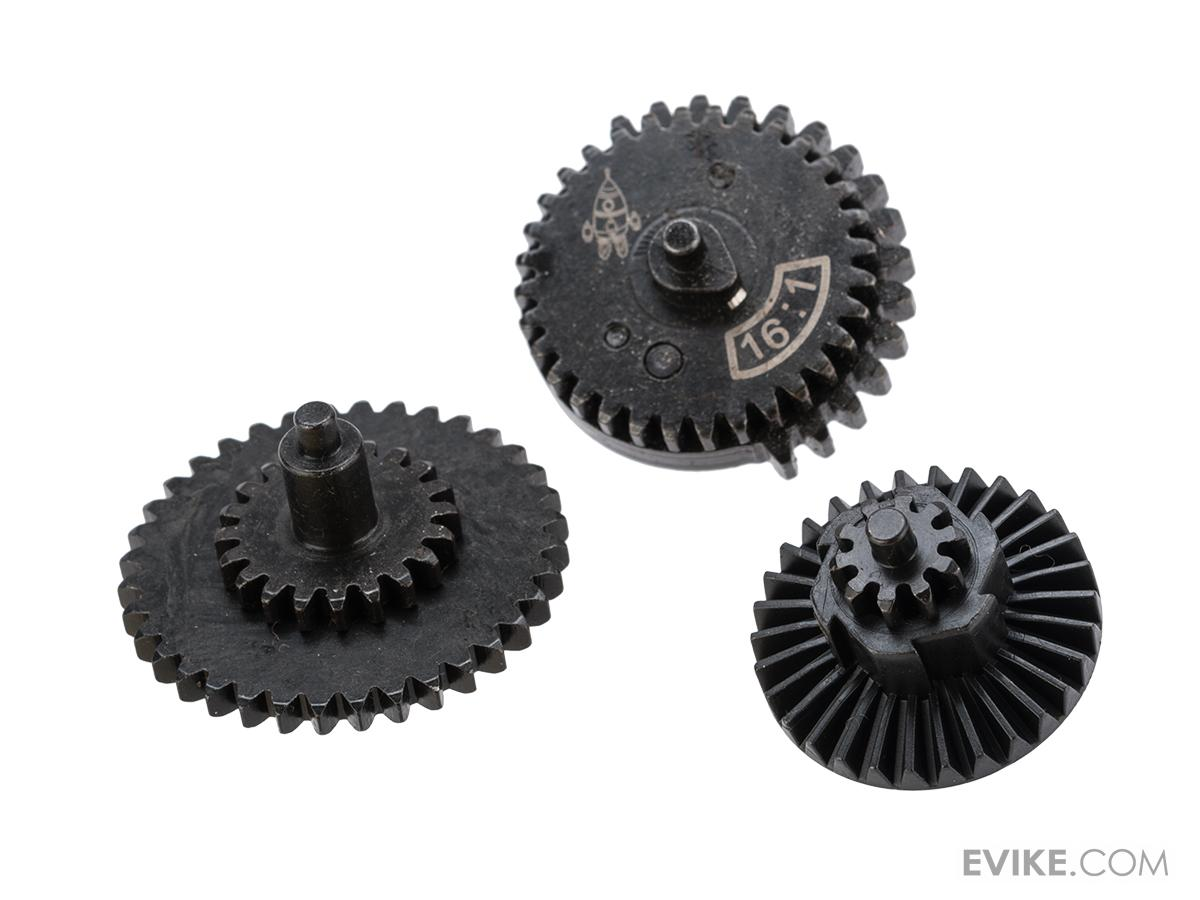

Pictured: Rocket Airsoft CNC Steel Gear Set for Tokyo Marui Spec Airsoft AEG Gearboxes

6. Gearset

A gearset upgrade makes sense for full internal builds or when running an upgraded motor on a high-voltage battery. Stock gears in budget to mid-tier AEGs are often made from softer metals that can strip under sustained high-performance use.

The right gear ratio depends on what motor and spring you're running. Lower ratio gears (13:1-16:1) pair well with high-speed motors and lighter springs, prioritizing ROF. Higher ratio gears (18:1-22:1+) work better alongside high-torque motors or heavier springs, providing the mechanical advantage needed to cycle reliably under load. For most mid-range builds, 18:1 is a solid starting point that balances ROF and torque without overloading components.

The UFC / SHS Wire Cut Steel Gear Set has been a favorite choice amongst Airsofters for over a decade, built from CNC-machined steel and heat treated for enhanced durability. When doing gear work, it's also worth replacing the tappet plate at the same time; the Retro Arms CNC POM Tappet Plate is a popular choice for fast-cycling builds, where the stock tappet is a common failure point at higher cycling speeds.

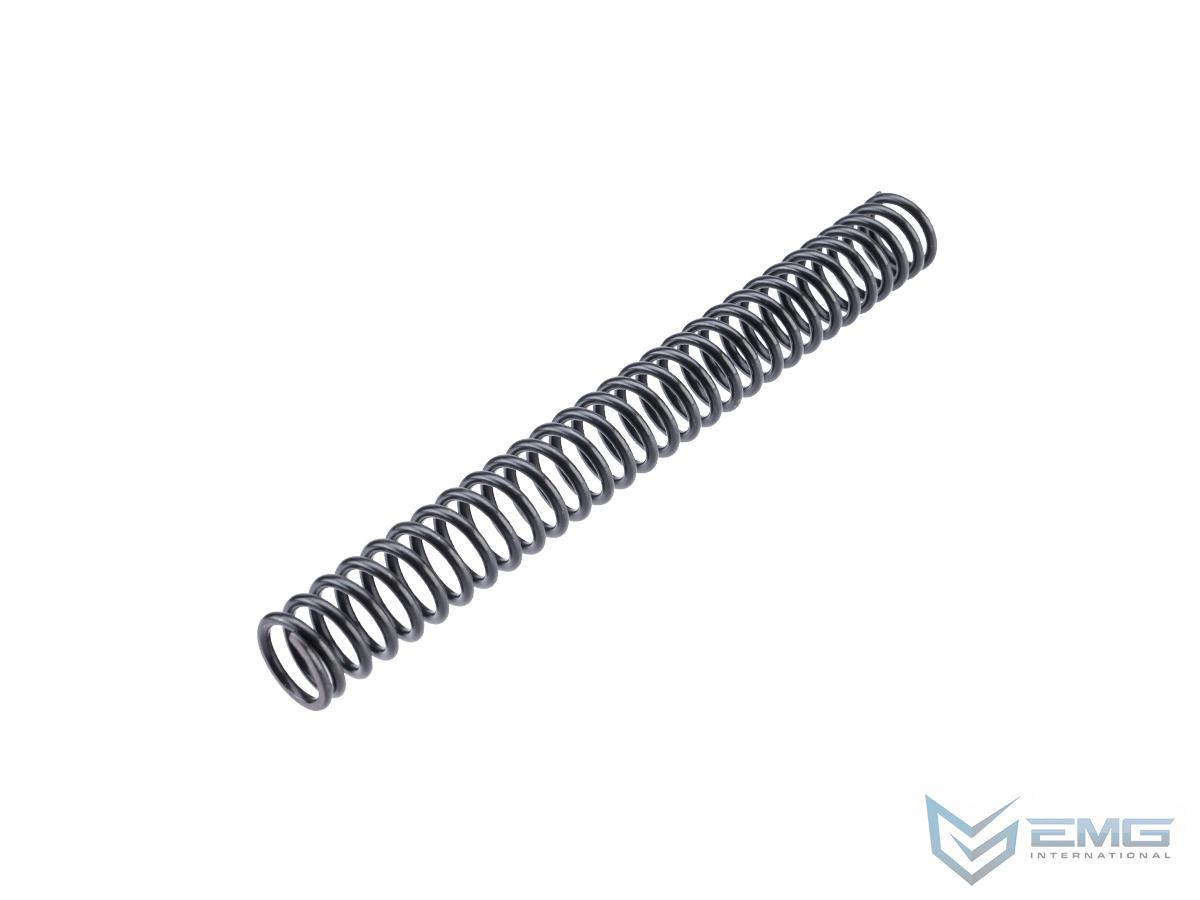

Pictured: EMG Max Performance Gearbox Spring for Airsoft AEG Rifles

7. Spring

The spring is last in the internal upgrade sequence for a reason: stronger springs stress every other component you've already installed. Don't upgrade here until the rest of the internals are solid.

Spring ratings use a standard system where the "M" number indicates theoretical velocity in meters per second with a 0.20g BB, though actual output varies by AEG. Common benchmarks: M90 puts out approximately 295 FPS and is ideal for CQB builds; M100 (the 1-joule spring) produces approximately 328 FPS and suits general outdoor play; M105 puts out approximately 344 FPS and is about the maximum for most standard field limits; M120 through M130 produce roughly 380-420 FPS and are appropriate for DMR builds only.

Always verify your field's FPS cap before upgrading your spring. Exceeding field limits means you're benched for the day at best.

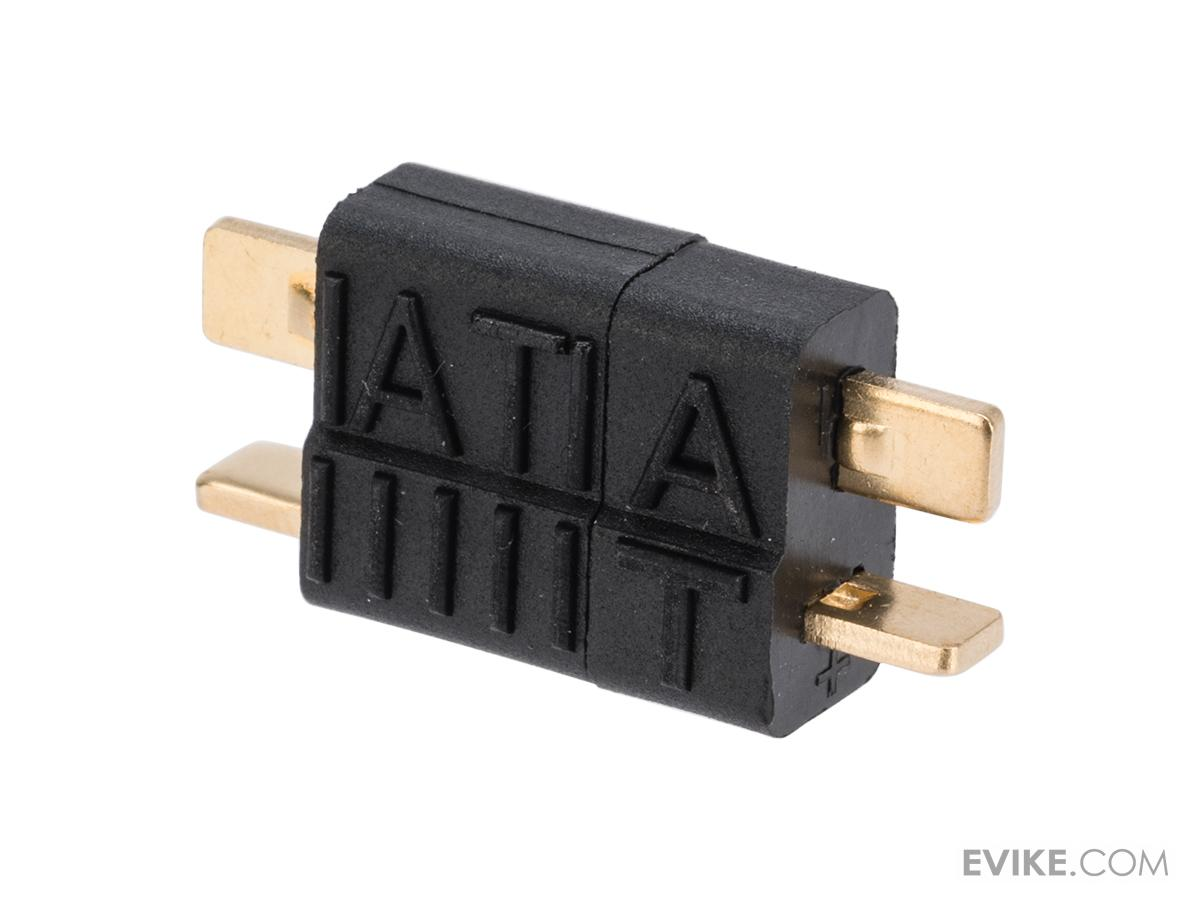

Pictured: Titan Power Standard Deans T-Plug Airsoft Connector

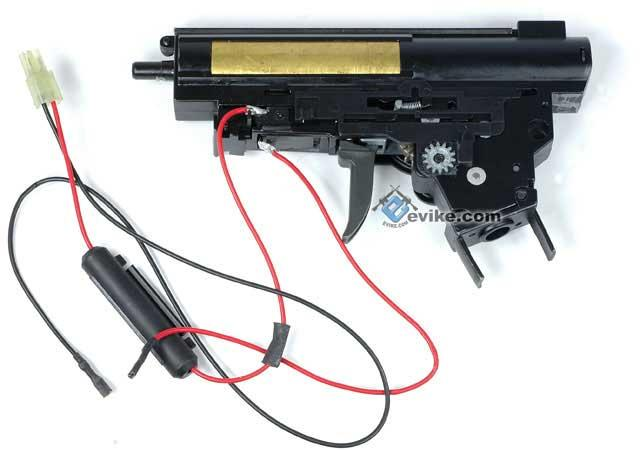

8. Electrical Wiring and Connectors

Wiring is one of the most overlooked Airsoft upgrades in an AEG build, but it has a genuine impact on ROF and trigger response by reducing electrical resistance between the battery and motor. Older and budget-tier AEGs often ship with Mini-Tamiya connectors and thinner wiring, both of which introduce resistance that caps your electrical efficiency. Many modern guns now come with Deans (T-plug) connectors and 16-gauge wiring as standard. If yours doesn't, swapping to both is a straightforward upgrade that makes a noticeable difference, particularly when you're chasing maximum ROF.

For high-RPS (rounds per second) builds, heavy-gauge silver-plated wire further reduces resistance beyond what standard 16-gauge offers. This upgrade is also effectively a prerequisite for a MOSFET like the Gate Titan; the Titan is designed to work with Deans connectors, and running it with stock wiring undercuts its performance benefits.
